Adding text to a Pdf Document - React ​

In this example we add text to a pdf document. We start with creating an empty document of size a5 in portrait mode.

tsx
const emptyA5PortraitDocument = await _app.createDocument(null, [
  {
    operation: "create-page",
    data: {
      orientation: "portrait",
      size: "a5",
    },
  },
]);

Then we call the addText method on the PdfPages component to add the text to the first page (index 0), on a the specified position in the specified font and color:

tsx
await _pages.addText(0, y, x, `UnoPdf`, 'Helvetica', 12, color);

When we wrap that in a loop and do some math we can create a circle of text. See below for a full example.

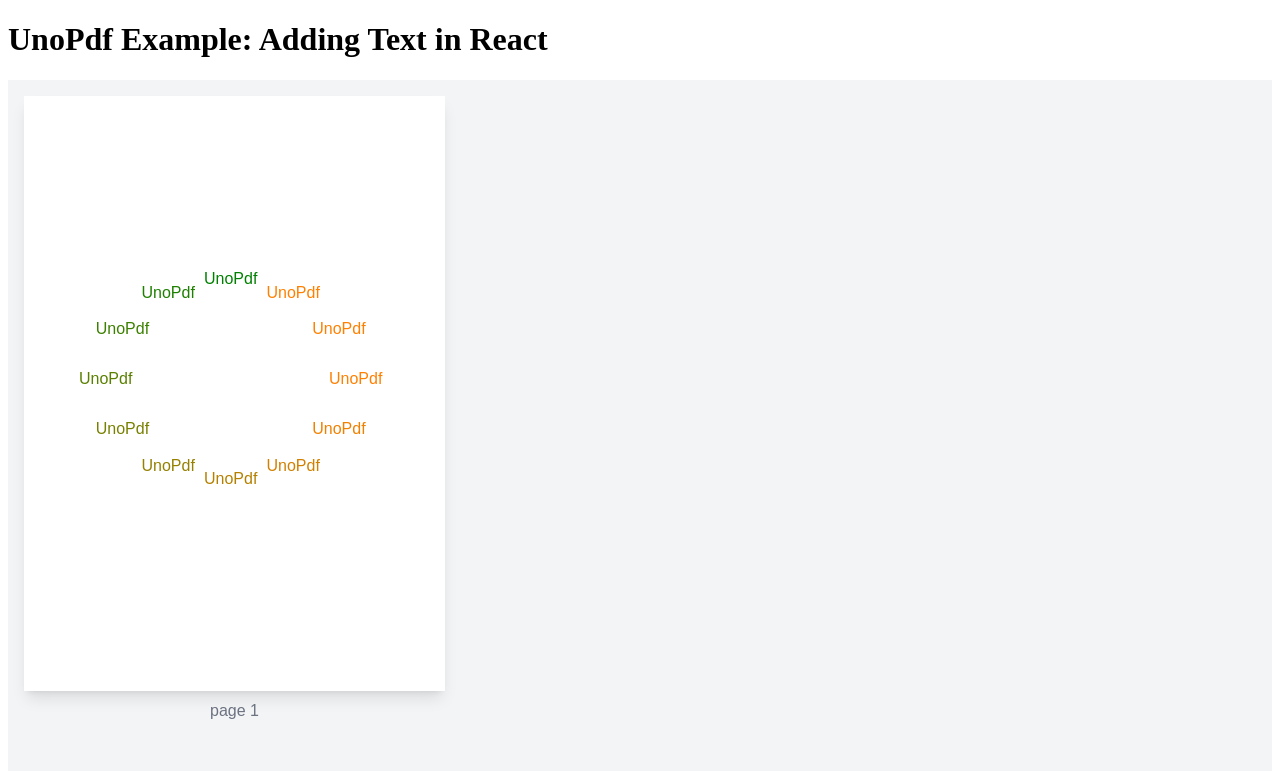

Screenshot ​

Screenshot op add-text

Code ​

tsx
import {
  PdfApplication,
  PdfDocument,
  PdfPages,
  defineCustomElements,
} from "@tallcomponents/unopdf-react";

import { useEffect, useRef } from "react";

defineCustomElements();

// Note: this example uses Vite and retrieves the keys from the environment.
// This should not be used in production.
// See the authentication section in the usage guide for more information.

const publickey = import.meta.env.VITE_PUBLIC_KEY;
const privatekey = import.meta.env.VITE_PRIVATE_KEY;

function App() {
  const pdfApplication = useRef<HTMLPdfApplicationElement>(null);
  const pdfDocument = useRef<HTMLPdfDocumentElement>(null);
  const pdfPages = useRef<HTMLPdfPagesElement>(null);

  useEffect(() => {
    const addImageToPage = async () => {
      if (pdfApplication.current) {
        const _app = pdfApplication.current;

        if (pdfDocument.current) {
          const _document = pdfDocument.current;
          if (pdfPages.current) {
            const _pages = pdfPages.current;

            //#region create_document
            const emptyA5PortraitDocument = await _app.createDocument(null, [
              {
                operation: "create-page",
                data: {
                  orientation: "portrait",
                  size: "a5",
                },
              },
            ]);
            //#endregion create_document

            _document.addEventListener('loaded', async () => {
              for (let α = 0; α < 360; α += 360 / 12) {
                const x = 180 - 125 * Math.sin(α * Math.PI / 180);
                const y = 300 + 100 * Math.cos(α * Math.PI / 180);

                const [r, g, b] = [α, 128, 0];
                const color = `rgb(${r} ${g} ${b})`;
                //#region add_text
                await _pages.addText(0, y, x, `UnoPdf`, 'Helvetica', 12, color);
                //#endregion add_text
              }
            });
            await _document.open(emptyA5PortraitDocument?.id ?? "");
          }
        }
      }
    };
    addImageToPage();
  }, []);

  return (
    <>
      <h1>UnoPdf Example: Adding Text in React</h1>

      <PdfApplication
        ref={pdfApplication}
        publickey={publickey}
        privatekey={privatekey}
      />

      <PdfDocument ref={pdfDocument} />
      <PdfPages ref={pdfPages} />
    </>
  );
}

export default App;

Running the example ​

  • Download the react - Adding text to a Pdf Document project
  • Unzip the file to a directory react-add-text.
    shell
    unzip react-add-text.zip -d react-add-text
  • Open a terminal and go to that directory
    shell
    cd react-add-text
  • Install dependencies
    shell
    npm install
    shell
    yarn
  • Start the project
    shell
    npm run start
    shell
    yarn start
